Line Level 3.5mm output
The jack will look something like the one in this picture, though it will be placed in different places depending on the building. It could be on the podium, under the clerk's desk, or behind the sacrament table for instance.
Equipment List
Sharing the Line Level output with two devices (optional)
Wired Setup

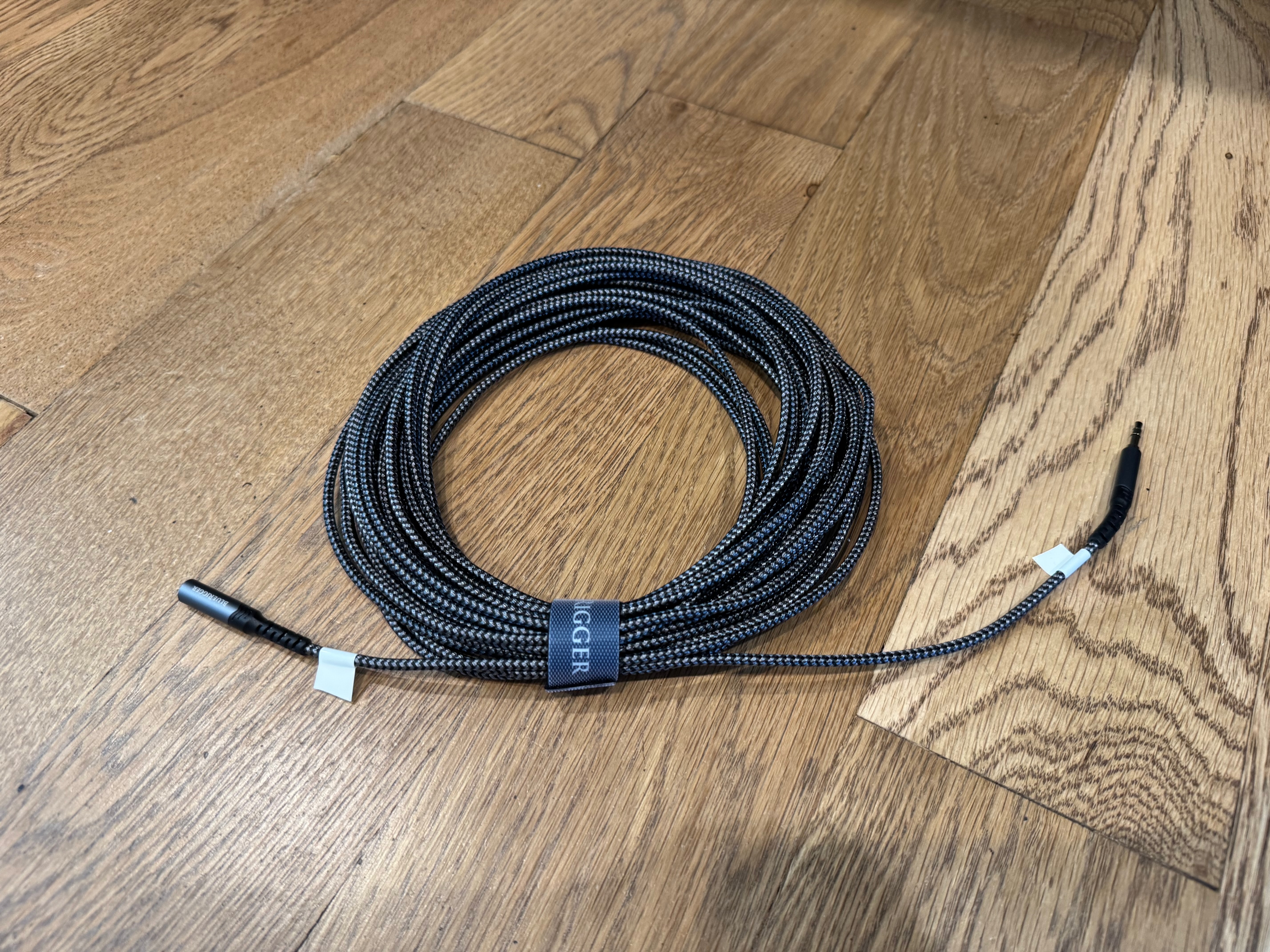

Headphone extension cable
The length will vary depending on how far away your device running the interpretation web application is from the line level out jack. This example is 40ft.

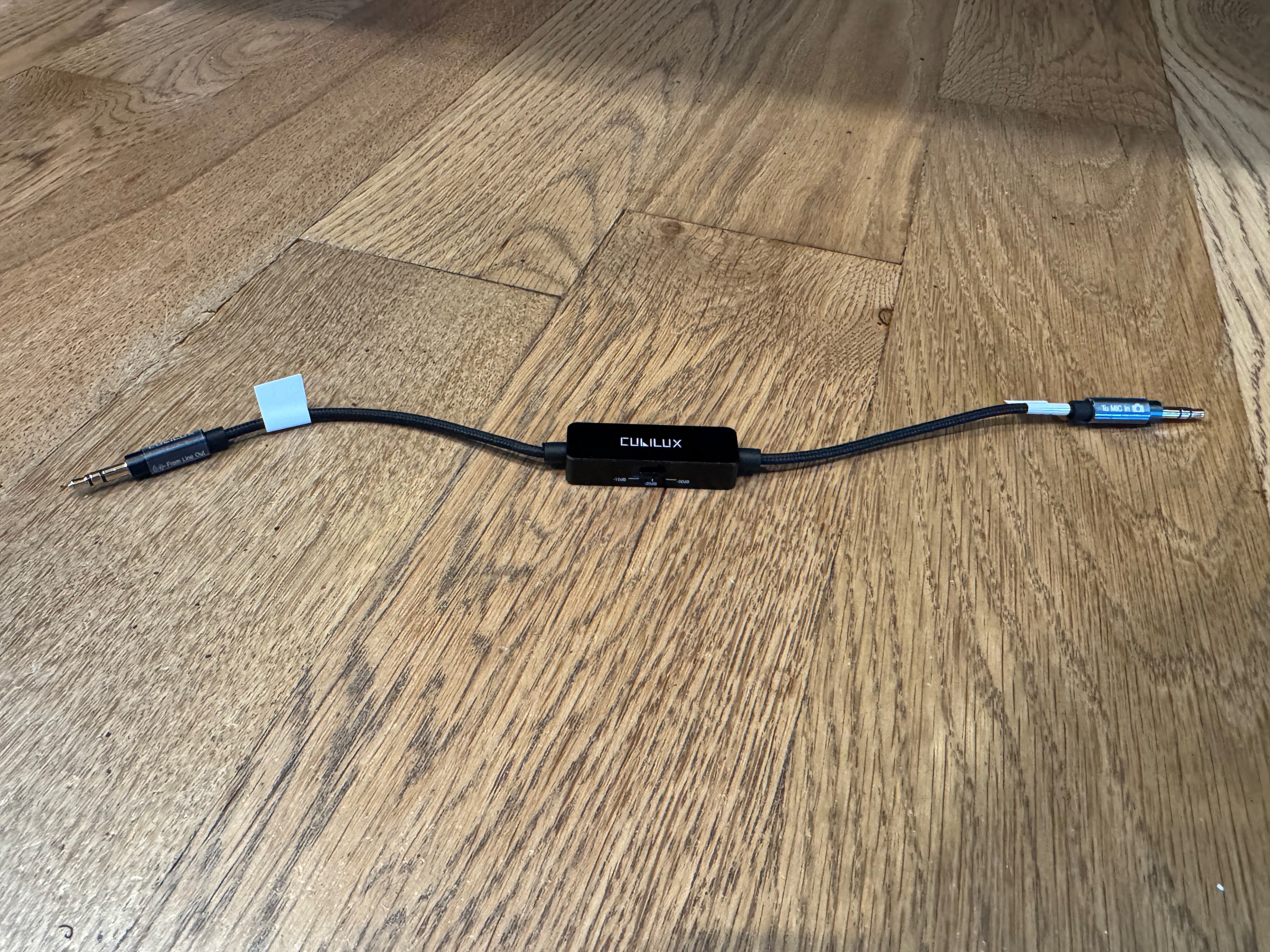

3.5mm TRS Line to Microphone Attenuator Cable
This reduces a strong, loud audio signal (line-level) down to a weak audio signal (mic-level).
USB 3.5mm to USB Audio Adaptor (sound card)
Adds 3.5mm audio in and audio out support to a device.
3.5mm to RCA Audio Cable (optional)
Connects the audio adapter to an assistive listening hub.
Wireless Setup
Wireless Mic System
A wireless mic system like the Røde Wireless GO III will transmit audio from the Line Level output jack to your device. This can be much more convenient when the output jack is on the podium. In addition, it allows you to use it in other meetings where there may bot be a microphone system because the Rode transmitters have both a 3.5mm input as well as a built-in microphone.
Headphone extension cable
You shouldn't need more than 3ft long.
3.5mm TRS Line to Microphone Attenuator Cable
This reduces a strong, loud audio signal (line-level) down to a weak audio signal (mic-level), which is what the Røde transmitter expects.
USB 3.5mm to USB Audio Adaptor (sound card)
This reduces a strong, loud audio signal (line-level) down to a weak audio signal (mic-level).
3.5mm to RCA Audio Cable (optional)
Connects the audio adapter to the assistive listening hub.
2nd Language Audio Broadcaster
3.5mm to RCA Audio Cable
Connects the audio adapter to the assistive listening hub.
USB C to 3.5mm Audio Adapter
Adds 3.5mm audio out support to a device.
Assistive Listening System hub
The device running the All May Hear Recorder or Reader applications can be plugged into an assistive listening hub. The translated audio feed can then be broadcast to the assistive listening system headsets.
This is typically purchased through the FM group.
Gaffer tape or Carpet Cord Cover
If you have to run cables along the floor you will need to tape it down so people don't trip. There are also carpet cord cover solutions which are velcro and can be reused.
